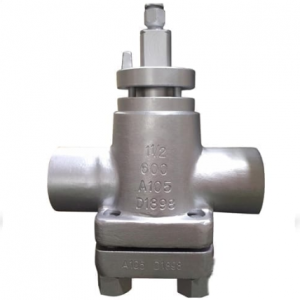

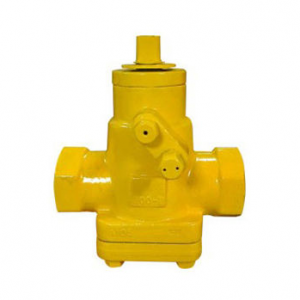

Socket Weld End Lubricated Plug Valve

Socket Weld End Lubricated Plug ValveSocket Weld End Lubricated Plug Valve
Socket Weld End Lubricated Plug Valve

Socket Weld End Lubricated Plug Valve Product introduction

 Socket Weld End Lubricated Plug Valve Manufacturer, Factory and Supplier. Socket Weld End Lubricated Plug Valve is used under nominal pressure of CLASS 150-2500LB, and works at the temperature of -29~180° C or high temperature. A cavity in the middle of the lubricated plug valve contains a sealant that moves toward the radial holes, creating a renewable seal between the plug and body when operated. The sealant can also act as a lubricant that reduces friction to elongate the plug valve’s lifespan.

Socket Weld End Lubricated Plug Valve is applicable to the cutting and connection of pipelines medium as widely used in various industries such as petroleum, chemical industry, pharmacy, chemical fertilizer, power industry etc.

Socket Weld End Lubricated Plug Valve Feature:

1. It has logical structure, reliable seal, excellent performance and nice design.
It has the structure of flip-chip balanceable pressure and light on/off operation.
2. An sealant groove is set between valve body and seal surface, which may infuse the seal grease to increase the seal capability.
3. The part material and flange dimension may be selected according to current operating condition and users requirement, so that meet the requirements of various engineering.


Socket Weld End Lubricated Plug Valve specification:

Specifications Details
Design Standard API-599, API-599, ASME B16.34
Pressure/Temperature Chart ASME B16.34
 Face to face Dimension API-6D, ASME B16.10,
Testing Standard API 598 / BS EN 12266-1
Flange Details ASME B16.5 UP TO 24″
DIN / BS / IS / JIS
Butt Weld Ends ASME B16.25
Socket Weld Ends ASME B16.11
Screwed Ends ASME B16.11
Size Range 1/2″ – 2″ (DN15 – DN50)
ASME Class Class 150 & 2500
Materials WCB / LCB / LCC / CF8M / CF8 /CF3M / 4A / 6A
Trims F6a / F316 / F304 / F316L / F321 /
F51 / F55 / Inconel
Seat F6a / F316 / F304 / F316L / F321 /
F51 / F55 / Inconel
Ends Socket Weld Ends.or Flange Ends or Butt-weld Ends, Screwed Ends,
