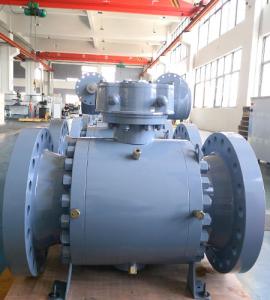

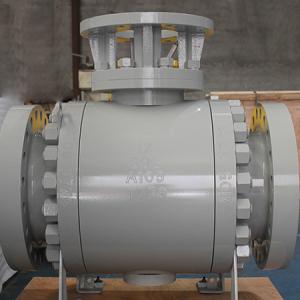

12 Inch trunnion mounted ball valve A105

12 Inch trunnion mounted ball valve A105 Product introduction

　China trunnion ball valve manufacturer,factory,company and supplier for 12 inch trunnion mounted ball valve A105,which is trunnion mounted structure, 3PC split body,full bore or reduced bore with different material and different pressure class.

12 inch trunnion mounted ball valve A105 specification

Product Name	12 inch trunnion mounted ball valve A105
1. Material	A351 CF8M/CF8/CF3, A216 WCB, A352 LCB/LCC
2. Size	2''~48'' ( DN50~DN1200)
4. Port	Full Port
5. Working Pressure	150LB~2500LB
6. Connection Ends	Flange
7. Working Temp.	-196ºC~450ºC
8. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
9. Seal	PTFE, RPTFE, PPL
10. Locking	Option
11. Inspection & Testing	According to API598

12 inch trunnion mounted ball valve A105 feature

Full Bore & Reduced Bore
Anti-static Device
Blow-out Proof Stem
Fire Safe Design
Emergency Sealant Injector
Vent Valve, Drain Valve
Lifting lugs and supporting feets(8" & larger)
Optional Lockable Handle Lever; Gear Box, Electric, Pneumatic & Hydraulic

12 inch trunnion mounted ball valve A105 standard
Design And Manufacture : ASME B16.34/API 6D
Valve Structural Length : ASME B16.10
Flange Connection Dimension : ASME B 16.5
Valve Check Up And Manufacture Test: API 598
Fire Safe Test: API 607/API6FA
Special: NACE MR-01-75
