Q41M-16C Integral type ball valve

Q41M-16C Integral type ball valveQ41M-16C Integral type ball valve
Q41M-16C Integral type ball valve

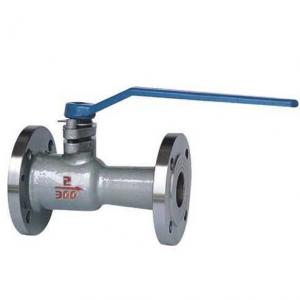

Q41M-16C Integral type ball valve Product introduction

Q41M-16C Integral type ball valve

Q41M-16C Integral type ball valve Technical parameters



Q41M-16C Integral type ball valve Main part material

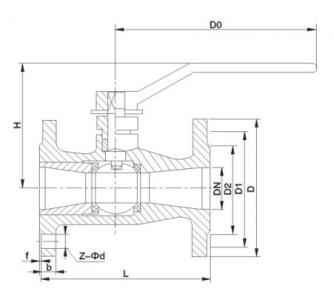

Q41M-16C Integral type ball valve Main dimension



Model


DN

Dimension

L

D

D 1

D 2

z-φd

H

b












Q41M-16C

15

130

95

65

45

4-14

85

14

20

150

105

75

55

4-14

95

16

25

160

115

85

65

4-14

103

16

32

180

135

100

78

4-18

105

18

40

200

145

110

85

4-18

120

18

50

230

160

125

100

4-18

195

20

65

290

180

145

120

4-18

195

20

80

310

195

160

135

8-18

215

22

100

350

215

180

155

8-18

253

24
