Q41F46 PTFE lined ball valve

Q41F46 PTFE lined ball valveQ41F46 PTFE lined ball valve
Q41F46 PTFE lined ball valve

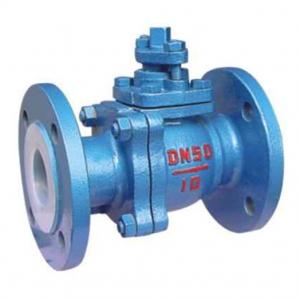

Q41F46 PTFE lined ball valve Product introduction

Q41F46 PTFE lined ball valve

Q41F46 PTFE lined ball valve Technical parameters


Q41F46 PTFE lined ball valve Main part material

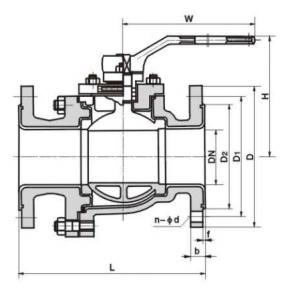

Q41F46 PTFE lined ball valve Main dimension

Size Q41F46 PTFE lined ball valve PN1.6(MPa)      Dimension(mm) Outline Weight
DN L D D1 D2 f b Z-Φd H1 Do
15 130 95 65 45 3 14 4-Φ14 95 140 4
20 140 105 75 55 3 14 4-Φ14 98 150 4.5
25 150 115 85 65 3 16 4-Φ14 113 150 5.5
32 165 135 100 78 3 18 4-Φ18 130 180 7
40 180 145 110 85 3 18 4-Φ18 135 200 9
50 200 160 125 100 3.5 20 4-Φ18 140 220 15
65 220 180 145 120 3.5 20 4-Φ18 145 280 17
80 250 195 160 135 4 22 8-Φ18 205 320 30
100 280 215 180 155 4 24 8-Φ18 230 380 40
125 320 245 210 185 4 26 8-Φ18 252 500 60
150 360 280 240 210 4 28 8-Φ23 283 600 75
200 400 335 295 265 5 30 8-Φ23 325 750 130
250 450 405 355 320 5 34 12-Φ26 370 900 210


Q41F46 PTFE lined ball valve Related Products

Previous:Q41F Flanged ball valve

Next:Q14F Q15F thread 3 way ball valve
