Eccentric half ball valve

Eccentric half ball valve Product introduction

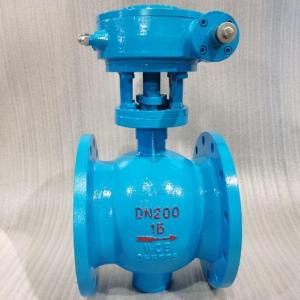

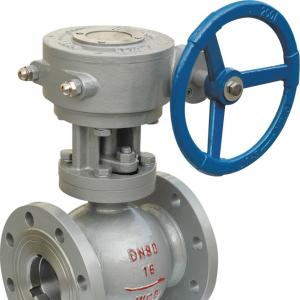

Eccentric half ball valve manufacturer, factory and supplier. Eccentric half ball valve is suitable for natural gas pipelines, eccentric half ball valve body is integrated, reduce leakage point, easy maintenance, advanced technology, high acceptance pressure, wide range of use. Eccentric half ball valve pressure loss is small: fully open when the water loss is zero, the flow channel is completely smooth, and the medium will not deposit in the valve body cavity; High Material wear resistance: V-shaped opening between the ball crown and the metal seat with shear action, in the closing process, only in the moment after the ball crown to the seat, no friction, and the seat made of wear-resistant nickel alloy, not easy to be scour and wear, so suitable for containing fiber, tiny solid material, pulp;

Eccentric half ball valve Product characteristics:

1. Switch is light: when opening, the spool is separated from the valve seat, without any contact, starting torque is less than the ball valve, flexible rotation;

2. Eccentric structure design, the use of eccentric - wedge CAM principle, close reliable, good sealing performance;

3. When the valve is closed, the wedge force can remove the scaling and adhesion on the sealing surface, with anti-scarring function.

Eccentric half ball valveTechnical parameter:

1. Caliber DN40~DN1400

2. Pressure: PN6~PN64

3. Material: Ductile iron, WCB, CF8M, CF8(304), CF8M(316), CF3(304L), CF3M(316L), etc

4. Sealing surface: surfacing carbide, but also according to customer requirements valve disc or inner cavity spraying treatment

5. Connection mode: flange, clamp, welding

6. Operation: worm gear transmission, pneumatic, electric, hydraulic and other actuator optional

Eccentric half ball valve Technical parameters

Eccentric half ball valve Main part material

Eccentric half ball valve Main dimension

PN(MPa)	DN(mm)	Dimension(mm)
PN(MPa)	DN(mm)	d1	L	D	D1	D2	D6	f	f2	b	Z-φd	H1	H2
1.6	25	25	150	115	85	65	-	2	-	14	44	-	75
	32	32	165	135	100	78	-	2	-	16	48	-	105
	40	40	180	145	110	85	-	3	-	16	48	-	95
	50	50	200	160	125	100	-	3	-	16	48	-	107
	65	65	220	180	145	120	-	3	-	18	48	-	142
	80	80	250	195	160	135	-	3	-	20	88	-	152
	100	100	280	215	180	155	-	3	-	20	88	-	178
	125	125	320	245	210	185	-	3	-	22	88	-	252
	150	150	360	280	240	210	-	3	-	24	8-23	-	272
	200	200	400	335	295	265	-	3	-	26	12-23	-	342
2.5	25	25	150	115	85	65	-	2	-	16	44	-	75
	32	32	165	135	100	78	-	2	-	18	48	-	85
	40	40	180	145	110	85	-	3	-	18	48	-	95
	50	50	200	160	125	100	-	3	-	20	48	-	107
	65	65	220	180	145	120	-	3	-	22	88	-	142
	80	80	250	195	160	135	-	3	-	24	88	-	152
	100	100	280	230	190	160	-	3	-	28	8-23	-	178
	125	125	320	270	220	188	-	3	-	30	8-25	-	252
	150	150	360	300	250	218	-	3	-	34	8-25	-	272
	200	200	400	360	310	278	-	3	-	34	12-25	-	342
4.0	25	25	150	115	85	65	58	2	4	16	44	-	75
	32	32	180	135	100	78	66	2	4	18	48	-	107
	40	40	200	145	110	85	76	3	4	18	48	-	95
	50	50	220	160	125	100	88	3	4	20	48	-	107
	65	65	250	180	145	120	110	3	4	22	88	-	142
	80	80	280	195	160	135	121	3	4	22	88	-	152
	100	100	320	230	190	160	150	3	4.5	24	8-23	-	178
	125	125	400	270	220	188	176	3	4.5	28	8-25	-	252
	150	150	400	300	250	218	204	3	4.5	30	8-25	-	272
	200	200	502	375	320	282	260	3	4.5	38	12-30	-	342
