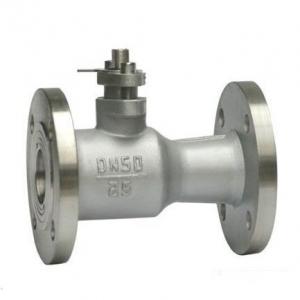

Q41M High temperature integral ball valve Product introduction

Q41M High temperature integral ball valve

Q41M High temperature integral ball valve Technical parameters



Q41M High temperature integral ball valve Main part material

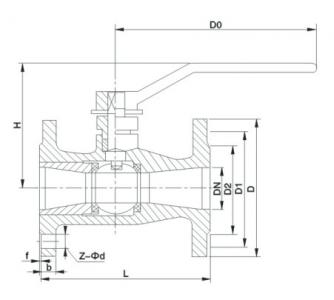

Q41M High temperature integral ball valve Main dimension


Model


DN

Dimension

L

D

D 1

D 2

z-φd

H

b







Q41M-16P
High temperature integral ball valve

15

130

95

65

45

4-14

85

14

20

150

105

75

55

4-14

95

16

25

160

115

85

65

4-14

103

16

32

180

135

100

78

4-18

105

18

40

200

145

110

85

4-18

120

18

50

230

160

125

100

4-18

195

20

65

290

180

145

120

4-18

195

20

80

310

195

160

135

8-18

215

22

100

350

215

180

155

8-18

253

24
