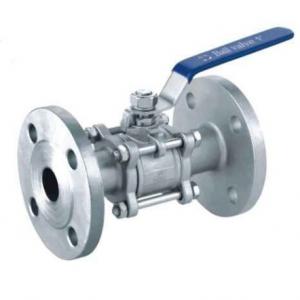

Q41F Flanged ball valve Product introduction

Q41F Flanged ball valve

Q41F Flanged ball valve Main part material

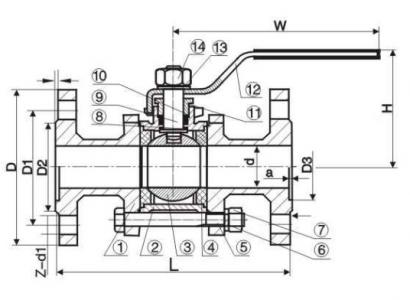

Q41F Flanged ball valve Main dimension

SIZE

1/2"

3/4"

1"

11/4"

11/2"

2"

21/2"

3"

4"

d

15

20

25

32

38

50

65

76

100

L

130

150

160

180

200

230

290

310

350

D

95

105

115

135

145

160

180

195

230

D1

65

75

85

100

110

125

145

160

190

D2

45

55

65

78

85

100

120

135

160

b

14

16

16

18

18

20

22

24

24

f

2

2

2

3

3

3

3

3

3

H

75

95

90

110

130

140

170

180

250

W

130

140

140

170

200

220

350

350

550

n-do

4-14

4-14

4-14

4-18

4-18

8-18

8-18

8-18

8-22

Q41F Flanged ball valve Related Products

Previous:Jacket ball valve

Next:Q41F46 PTFE lined ball valve
