Q641F Pneumatic floating ball valve

Q641F Pneumatic floating ball valveQ641F Pneumatic floating ball valve
Q641F Pneumatic floating ball valve

Q641F Pneumatic floating ball valve Product introduction

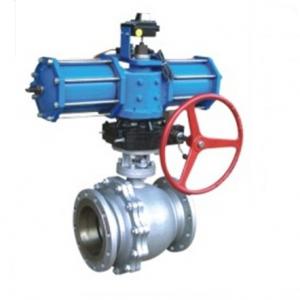

Q641F Pneumatic floating ball valve manufacturer, factory and supplier. Q641F Pneumatic floating ball valve is composed of high precision pneumatic actuator and precision ball valve. Q641F Pneumatic floating ball valve has the advantages of compact structure, small volume, reliable operation, low flow resistance coefficient, good tightness, easy maintenance, convenient installation, strong adaptability.Pneumatic actuated flange ball valve can be equipped with travel limit switch, solenoid valve, pressure reducing valve and 0.4-0.7MPa air source to achieve switch operation, and send two pairs of passive contact signals indicating the valve switch.

Q641F Pneumatic floating ball valve is particularly suitable for the medium is viscous, containing particles, fiber properties of the occasion.Pneumatic actuated flange ball valve is widely used in petroleum, chemical industry, teaching equipment, light industry, high pressure equipment, pharmaceutical, papermaking and other industrial automatic control system, for remote centralized control or local control.

Q641F Pneumatic floating ball valve product range:
-Ball valve size: 1/2" ~ 24" (DN25-DN600)
-Pressure: ANSI Class 150~2500(PN16-PN420)
-Temperature: -46ºC~ 450ºC
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
Trim: Carbon Steel, Stainless Steel, Duplex Steel
Pneumatic ball valve Design: BS5351, ANSI B16.34, DIN, JIS
Pneumatic ball valve Mounting Pad: ISO5211
Pneumatic Actuator Air Supply: 3bar~7bar

Q641F Pneumatic floating ball valve pneumatic actuator information:
1). Pressure Range: Max. Working pressure 10bar
2). Air pressure: 2.5bar~8bar
3). Adjustment Range: 90° ± 5°
4). Ambient temperature: -20 ~ +90° C
5). Type: Double-acting, Single-acting (spring return)
6). Optional accessories: Solenoid valve, limite switch, electric position, air regulator
7). Lubrication: All the moving parts are coated with lubricants, extending their service life
8). Life Time: One million time
Q641F Pneumatic floating ball valve accesories:
1 positioner (for regulating function)
2 solenoid valve
3 limited switch
4 handwheel
5 Air filter reducer
