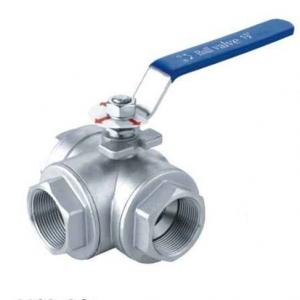

Q14F Q15F thread 3 way ball valve Product introduction
Q14F Q15F thread 3 way ball valve Main part material

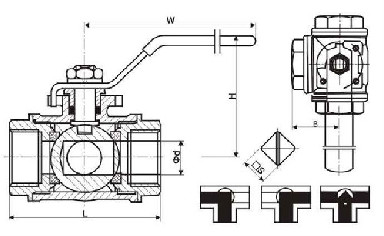

Q14F Q15F thread 3 way ball valve Main dimension
| SIZE | D | L | H | D1 | B | W1 | W2 | H |
| 1/2" | 12.7 | 64 | 53 | 97 | 32 | 22.4 | 35 | 10-24UNC |
| 3/4" | 16 | 76 | 63 | 126 | 38 | 22.4 | 35 | 10-24UNC |
| 1" | 20 | 87 | 66 | 126 | 43.5 | 22.4 | 35 | 10-24UNC |
| 1-1/4" | 25 | 96 | 81 | 145 | 48 | 22.4 | 35 | 10-24UNC |
| 1-1/2" | 32 | 114 | 83 | 145 | 57 | 22.4 | 38.1 | 1/4-20UNC |
| 2" | 38.1 | 142 | 96 | 204 | 71 | 22.4 | 38.1 | 1/4-20UNC |
Q14F Q15F thread 3 way ball valve Related Products
