2 Pieces Devlon Seat Ball Valve

2 Pieces Devlon Seat Ball Valve2 Pieces Devlon Seat Ball Valve
2 Pieces Devlon Seat Ball Valve

2 Pieces Devlon Seat Ball Valve Product introduction

 Name:2 Pieces Devlon Seat Ball Valve

Fire Safe: API 607/ISO 14313

End to End: ASME B16.10 Long Pattern Ball Valve

Ends to ASME B16.5

Body: A216 WCB

Stem: ANSI 4140

Ball: A105+Electroless Nickel plating

Seat Insert: Devlon

Bolt/Nut: ASTM A193 B7/ A194 2H

Size & Class rating: ASME CL 900, 4 Inch

Temperature Range (°F): -40~300

Torque Value: 1200 N.m

Top Flange: ISO 5211 F14

2 Pieces Devlon Seat Ball Valve Technical parameters


2 Pieces Devlon Seat Ball Valve Main part material


2 Pieces Devlon Seat Ball Valve Main dimension


2 Pieces Devlon Seat Ball Valve Product order instruction

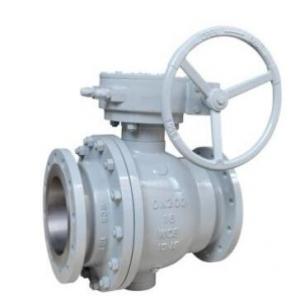

2 Pieces Devlon Seat Ball Valve Product show
