2PC 3000 PSI WOG Ball Valve CF8 CF8M

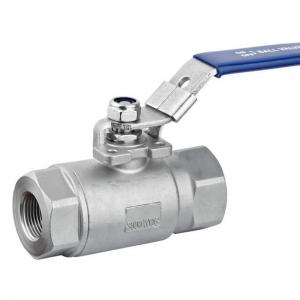

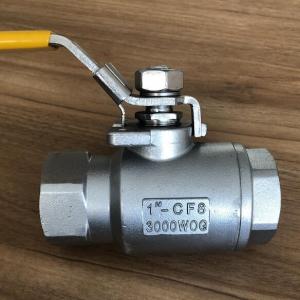

2PC 3000 PSI WOG Ball Valve CF8 CF8M Product introduction

　3000 PSI WOG Ball Valve Manufacturer, Factory and Supplier in China. 2PC 3000 PSI WOG Ball Valve CF8 CF8M is 2 piece cast stainless steel material body, full bore, floating ball structure. 2PC 3000 PSI WOG Ball Valve CF8 CF8M has the ability to withstand pipeline stress, as well as safety, weather resistance, long-term use of reliability seal design structure, which is fully considered in the design.The driving mode of 2PC 3000 PSI WOG Ball Valve CF8 CF8M can be manual, Lever, pneumatic and electric, the connection mode can be flange and welding, the structure is three-stage, the sealing structure can be soft seal and hard seal.

2PC 3000 PSI WOG Ball Valve CF8 CF8M Feature:
1. All parts are casting, or forged structure is optional.
2. Lower mounted valve stem and inverted sealing structure of equipment are adopted
3. The use of Mosaic valve seat, seat back equipment O ring, to ensure that the medium leakage
4. The sealing surface use nylon,PTFE,Delvon,PEEK or metal seat for good perfornamce and long service life.
5. Floating ball, full bore or reduce bore.
6. ISO5211 mounting pad for option.
7. Blow-out proof stem design.
8. Anti-static design and API 607 Fire Safe Design available
9. Operation: Lever, Pneumatic actuator & Electric Actuator.

2PC 3000 PSI WOG Ball Valve CF8 CF8M Specification:

Product Name	2PC 3000 PSI WOG Ball Valve CF8 CF8M
1. Material	Casting:WCB, CF8,CF8M,etc. Forging: A105,F304,F316 etc.
2. Size	1/4~2 inch ( DN10~DN50)
3. Port	Full Port
4. Working Pressure	3000 PSI or others
5. Connection Ends	Threaded end Socket welded or others
6. Working Temp.	-20~180ºC,-46~450ºC, or according to customer requirements for different industry.
7. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
8. Operation	Handle operated, Locking device is option
9. Inspection & Testing	According to API598
