3 Way Top Entry Ball Valve Manufacturer

3 Way Top Entry Ball Valve Manufacturer Product introduction

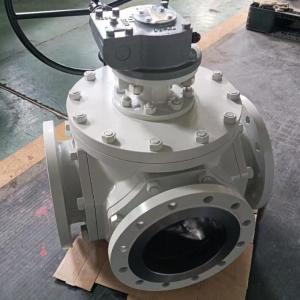

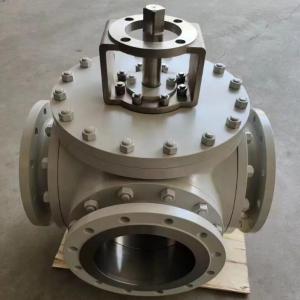

　China 3 Way Top Entry Ball Valve manufacturer, factory and supplier. 3 Way Top Entry Ball Valve is one-piece flange top-entry trunnion design, inline maintenance service, double block and bleed, anti-blowout stem design, O-rings plus fire-safe packing prevents leakage, wave springs provide upstream and downstream sealing, stainless steel sealant injection fittings for emergency stem of seat sealing. 3 Way Top Entry Ball Valve is designed with stem/body connection preventing stem blowout under line pressure.

3 Way Top Entry Ball Valve Specification:

Port size: 1/2"~24" (DN15~DN600)
Design: API 6D/API 608; DIN3357; EN 13709; BS5351; JIS 2071
Inspection&Testing: API 598/API 6D; DIN 3230; EN 12266; BS5146; JIS B2003
Face to Face:ASME B16.10; DIN 3202; EN 558; BS2080; JIS B200
Structure: Ball
Pressure: CLASS 150lbs~900lbs (PN10~PN150)
Body: Carbon steel, Stainless steel, Alloy steel. Duplex steel, AL-Bronze
Seat: Resilient or metal seated
Connections: Ring type joint, Raised face, butt-welded, NPT, Wafer ect
Driving: manual, worm gear, pneumatic, electrical, hydraulic, actuator
Working temperature: -29℃~+200℃ (Other temperature discuss)
Application: General
Media: Oil, petro, Water, fire fighting, marine pipe lines
