304 316 Stainless Steel 6000 PSI Ball Valve

304 316 Stainless Steel 6000 PSI Ball Valve304 316 Stainless Steel 6000 PSI Ball Valve
304 316 Stainless Steel 6000 PSI Ball Valve

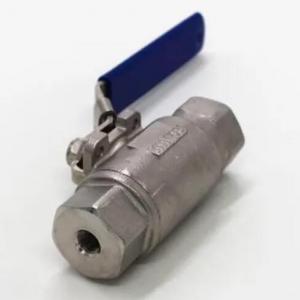

304 316 Stainless Steel 6000 PSI Ball Valve Product introduction

 304 316 Stainless Steel 6000 PSI Ball Valve Manufacturer, Factory and Supplier with best price for sale. 304 316 Stainless Steel 6000 PSI Ball Valve is 2PC structure, cast steel 304 316 or forged steel material optional, full bore, floating ball structure. 304 316 Stainless steel 6000 PSI Ball Valve is mainly used for long-distance pipeline transportation of oil and natural gas and urban gas piping systems. 304 316 Stainless steel 6000 PSI Ball Valve  has the ability to withstand pipeline stress, as well as safety, weather resistance, long-term use of reliability seal design structure, which is fully considered in the design.The driving mode of 304 316 Stainless steel 6000 PSI Ball Valve can be manual, worm wheel, pneumatic and electric, the connection mode can be flange and welding, the structure is three-stage, the sealing structure can be soft seal and hard seal.

304 316 Stainless Steel 6000 PSI Ball Valve  Feature:
1. All parts are cast steel, which is cheaper than forged steel
2. Lower mounted valve stem and inverted sealing structure of equipment are adopted
3. The use of Mosaic valve seat, seat back equipment O ring, to ensure that the medium leakage
4. The sealing surface use nylon,PTFE,Delvon,PEEK or metal seat for good perfornamce and long service life.
5. Floating ball, full bore or reduce bore.
6. ISO5211 mounting pad for option.
7. Blow-out proof stem design.
8. Anti-static design and API 607 Fire Safe Design available
9. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.


304 316 Stainless Steel 6000 PSI Ball Valve Specification:
Product Name 304 316 Stainless steel 6000 PSI Ball Valve
1. Material 304,316 etc.
2. Size 1/4~2 inch ( DN10~DN50)
3. Port Full Port
4. Working Pressure 6000 PSI or others
5. Connection Ends Threaded end Socket welded or others
6. Working Temp.  -20~180ºC,-46~450ºC, or according to customer requirements for different industry.
7. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
8. Operation Handle operated, Locking device is option
9. Inspection & Testing According to API598
