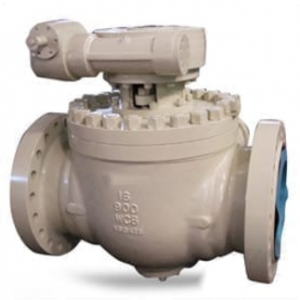

API 6D Top entry trunnion ball valve
API 6D Top entry trunnion ball valve

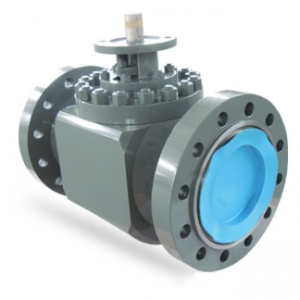

API 6D Top entry trunnion ball valve Product introduction
API 6D Top entry trunnion ball valve is one piece trunnion mounted structure,simple and quick to disassemble in the pipeline, convenient and quick to maintain.In the event of API 6D Top entry trunnion ball valve failure in the line that requires repair, instead of removing the top entry ball valve from the line, remove the flange bolts and nuts, remove the cover and stem assembly together from the body, and remove the ball and seat assembly.Forged trunnion top entry ball valve Ball and seat can be repaired online.This maintenance of API 6D Top entry trunnion ball valve saves time and keeps production losses to a minimum.
API 6D Top entry trunnion ball valve performance
Nominal size: NPS 2 ~ NPS 24
Operating temperature: -46℃ ~ 121℃
Working pressure: CLASS 150 ~ CLASS 2500
Materials:CF8, F304, CF8M, F316, etc
Design standards: API 6D, ISO 17292
Structure length: ASME B16.10
Connecting end: ASME B16.5, ASME B16.25
Test standard: API 598, API 6D
Operation mode: manual, worm gear, pneumatic, electric
Medium: water, oil, natural gas
API 6D Top entry trunnion ball valve design characteristics
1.Forged trunnion top entry ball valve cover, ball, seat, stem and other parts can be disassembled and installed online to achieve the online maintenance function.
2 with locking device to prevent incorrect operation of top entry ball valve.
3 Anti-fly stem design prevents abnormal increase of pressure in the cavity from forcing the stem to fly out and causing accidents.
4.Fire prevention and anti-static design.
5.Forged trunnion top entry ball valve stem and seat are provided with grease filling system.
6. DBB double truncation and discharge functions.
