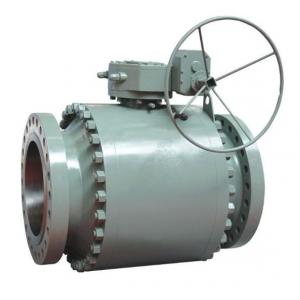

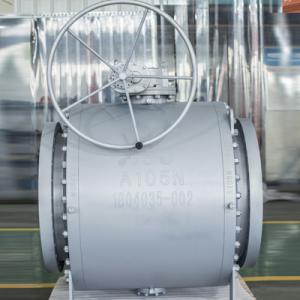

Big Size Trunnion Mounted Ball Valve,150# RF

Big Size Trunnion Mounted Ball Valve,150# RFBig Size Trunnion Mounted Ball Valve,150# RF
Big Size Trunnion Mounted Ball Valve,150# RF

Big Size Trunnion Mounted Ball Valve,150# RF Product introduction

Big Size Trunnion Mounted Ball Valve,150# RF Description:
Design standard: API 6D.
Body material: A105.
Nominal diameter: 28 Inch.
Pressure: 150 LB.
End connection: RF.
Face to face: ASME B16.10.
Working temperature: -29℃~+200℃.
Test and inspection: API 598.

Body material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal diameter: 2"~60" (DN50~DN1500).
End connection: BW, Flanged.
Pressure range: 150 lbs~2500 lbs (PN16~PN420).
Operation: Lever, Gearbox, Electric, Pneumatic, Electro Hydraulic Actutor, Gas Over Oil Actuator.
Working temperature: -46℃~+200℃
