Carbon steel pneumatic ball valve

Carbon steel pneumatic ball valve Product introduction

Carbon steel pneumatic ball valve is composed of high precision pneumatic actuator and precision carbon steel ball valve.Carbon steel pneumatic ball valve is mainly divided into soft seal pneumatic ball valve and hard seal pneumatic ball valve according to the working temperature.Carbon steel pneumatic ball valve has the advantages of compact structure, small volume, reliable operation, low flow resistance coefficient, good tightness, easy maintenance, convenient installation, strong adaptability.Pneumatic air operated ball valve can be equipped with travel limit switch, solenoid valve, pressure reducing valve and 0.4-0.7MPa air source to achieve switch operation, and send two pairs of passive contact signals indicating the valve switch.Carbon steel pneumatic ball valve is particularly suitable for the medium is viscous, containing particles, fiber properties of the occasion.Carbon steel pneumatic ball valve is widely used in petroleum, chemical industry, teaching equipment, light industry, high pressure equipment, pharmaceutical, papermaking and other industrial automatic control system, for remote centralized control or local control.

Carbon steel pneumatic ball valve product range:
-Ball valve size: 1/2" ~ 24" (DN25-DN600)
-Pressure: ANSI Class 150~2500(PN16-PN420)
-Temperature: -46ºC~ 450ºC
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
Trim: Carbon Steel, Stainless Steel, Duplex Steel
Pneumatic ball valve Design: BS5351, ANSI B16.34, DIN, JIS
Pneumatic ball valve Mounting Pad: ISO5211
Pneumatic Actuator Air Supply: 3bar~7bar

Carbon steel pneumatic ball valve pneumatic actuator information:

1). Pressure Range: Max. Working pressure 10bar

2). Air pressure: 2.5bar~8bar

3). Adjustment Range: 90° ± 5°

4). Ambient temperature: -20 ~ +90° C

5). Type: Double-acting, Single-acting (spring return)

6). Optional accessories: Solenoid valve, limite switch, electric position, air regulator

7). Lubrication: All the moving parts are coated with lubricants, extending their service life

8). Life Time: One million time

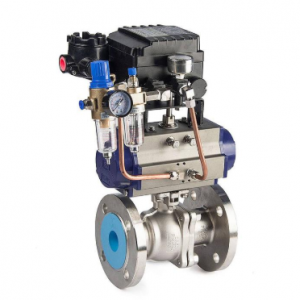

Carbon steel pneumatic ball valve accesories:
1 positioner (for regulating function)
2 solenoid valve
3 limited switch

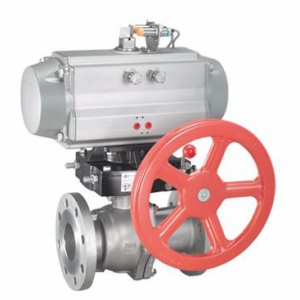

4 handwheel
5 Air filter reducer
