Class 1500 2500 Cryogenic forged steel ball valve

Class 1500 2500 Cryogenic forged steel ball valve Product introduction

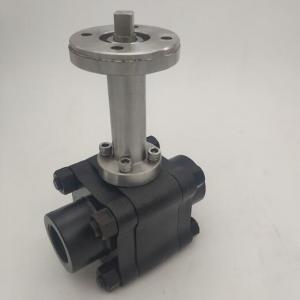

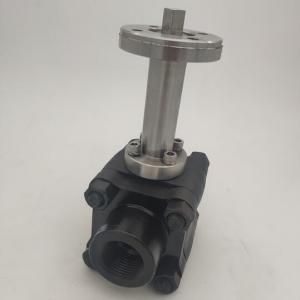

1500LB 2500LB Cryogenic forged steel ball valve manufacturer, factory and supplier. Class 1500 2500 Cryogenic forged steel ball valve is specially designed for gas treatment processes and storage and transportation of liquefied gasses such as LNG, liquid nitrogen, Oxygen,etc. Class 1500 2500 Cryogenic forged steel ball valve is required to be operated to give assured leakage rates. Class 1500 2500 Cryogenic forged steel ball valve which is recommended to use below -50⁰C, designed with a extended bonnet which separates the operator and stem seal from the cold temperature. Extended bonnet as per MESC SPE 77/200 & SPE 77/209 can also be given.

Class 1500 2500 Cryogenic forged steel ball valve Specification

Design Standard	API 6D / BS 6364
Pressure/Temperature Chart	ASME B16.34
Face to face Dimension	API 6D / ASME B16.10
Testing Standard	ASME B16.5
Flange Details	ASME B16.5
Size Range	2” – 4” (DN50 – DN100)
ASME Class	150 – 2500
Bore Type	Full Bore and Reduced Bore
Materials	LF2 / LF3 / F316 / F304 / F316L / LCB / LCC / CF8M / CF8 / CF3M
Trims	F316 / F304 / F316L
Seats	Soft / Metal
Ends	Flange ends, Threaded end, Socket weld end, Butt-weld End

Class 1500 2500 Cryogenic forged steel ball valve material

No	Part name	AS to ASTM		SS to ASTM
1	Body	Type A352 LCB	Type A352 LC3	Type F304(L)	Type F304(L)
2	Bonnet	Type A352 LCB	Type A352 LC3	A182 F304(L)	A182 F304(L)
3	Bolt	A193L7	A193 3 B8	A193 B8	A193 B8M
4	Nut	A193L7	A194 8	A194 8	A194 8M
5	Seal ring/Gasket	RTFE+Cu/Nylon/1010/PPL
6	Ball	A182 F304	A182 F304（L）	A182 F304(L)	A182 F316(L)
7	Shaft	A182 F304	A182 F304（L）	A182 F304(L)	A182 F316(L)
8	Packing	RTFE+Cu/Nylon1010/PPL/Graphite
9	Gland	A105N	A351 CF8
10	Lever	A193 L7	A193 B8	A193 B8	A193 B8
11	Suitable temperature	≥-40°C	≥-101°C	≥-196°C
