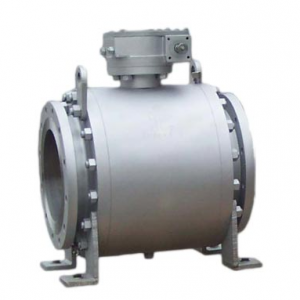

Full Port trunnion ball valve

Full Port trunnion ball valveFull Port trunnion ball valve
Full Port trunnion ball valve

Full Port trunnion ball valve Product introduction

 Full Port trunnion ball valve is designed in accordance with API 6D featuring 3 PC split body, side entry or top entry design. Full Port trunnion ball valve is wide range of sealing material including PTFE, PEEK, DEVLON, NYLON, etc, API 6D full bore split body trunnion ball valve can be used in working temperature range -46ºC~ 500ºC.

Full Port trunnion ball valve specification:

Trunnion mounted ball valve Size NPS 2″ - NPS 56″
Pressure Rating Class 150LB - Class2500LB
Material WCB, LCB, CF8, CF8M, CF3, CF3M, A105, LF2, F304, F316, F304L, F316L
Design & Manufacturing Standard API 608, API 6D, BS 5351, ASME B16.34, DIN, GOST, JIS
Fact to Face ASME B16.5, API 6D
End Connection ASME B16.5, ASME B16.47, ASME B16.25
Test and Inspection ISO 5208, API 6D
Operation Method Manual, Worm Gear, Electric Actuator, Pneumatic Actuator

Full Port trunnion ball valve Technical Specifications
-Design: ASME 16.34/ API 6D
-Face to Face: ASME B16.10
-End Flange: ASME B16.5
-BW End: ASME B16.25
-Test: API 598/ BS 6755
-Fire Safe Test: API 607/API 6FA
-Special: NACE MR-01-75

Full Port trunnion ball valve Design Features
-Full port or reduce port
-Fire Safe Design
-Trunnion Mounted Ball
-Double block & bleed
-Emergency sealant injection
-Cavity pressure self relief
-Blowout-proof stem
-Anti-Static Device
-Optional double piston design
