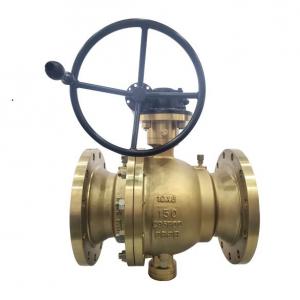

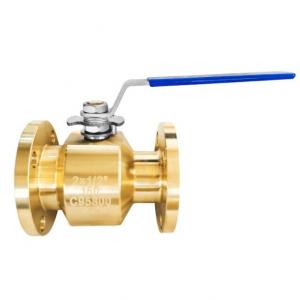

NAB C95800 C95500 Seawater Ball Valve

NAB C95800 C95500 Seawater Ball Valve Product introduction

　Nickel Aluminum Bronze C95800 C95500 Seawater Ball Valve Manufacturer, Factory and Supplier. C95800 C95500 Seawater Ball Valve has excellent corrosion resistance, being a suitable and far cheaper substitute to monel for many seawater applications. C95800 C95500 Seawater Ball Valve is mainly composed of nickel and ferromanganese. With excellent corrosion resistance, C95800 C95500 Seawater Ball Valve acts as an important material for marine propellers, pumps, valves and underwater fasteners, being widely used in seawater desalination and petrochemical industry.

C95800 C95500 Seawater Ball Valve Specification:

aterial: Aluminum Bronze C95800,C95500,C95400,RG5

Sealing:Metal or soft

Pressure: ASME Class150~2500LBS (PN16~PN260)

Size: NPS 2”~48” (50mm~1200mm)

Connection: RF, RTJ, BW

Operation: Hand lever, Gearbox, Pneumatic, Electric

C95800 C95500 Seawater Ball Valve Standard:

Design: API6D ,ASME B16.34 ,BS5351,ISO14313

Fire safe:API607,API 6FA,

Face-to-face: API 6D/ ASME B16.10

Flanged Ends:ASME B16.5/B16.47 /MSS SP-44/DIN/EN1092-1/GOST33259/JIS

BW Ends:ASME B16.25

Inspection Test :API 598,API6D,ISO5208,EN12266-1

Temperature Ratings :ASME B16.34

Certificate:EN 10204 type 3.1

Markings: MSS SP25

C95800 C95500 Seawater Ball Valve Features:
Bolted body or welded body, reduced bore or full bore, floating or trunnion ball, bi-direction flow, NACE MR-01-75, low torque, full bore or reduced bore piggable, and cryogenic designed metal seat ball valve with low temperate test and low fugitive emission test also available.

Zero leakage high performance metal to metal seat sealing.

High temperature application designed for solid particles.
