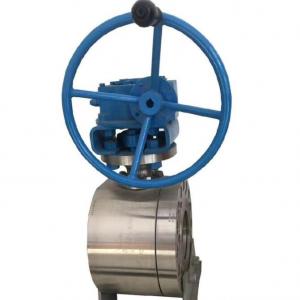

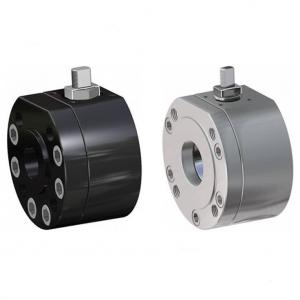

Split body wafer type ball valve

Split body wafer type ball valveSplit body wafer type ball valve
Split body wafer type ball valve

Split body wafer type ball valve Product introduction

 China Magnum Wafer and Split Wafer ball valve manufacturer, factory and supplier. Split body wafer type ball valve is for use in extremely low temperatures, 2 pcs forged body. This extensive range of Split body wafer type ball valve is  manufactured in both forged carbon steel and stainless steel variations.Split body wafer type ball valve is suitable for intercepted fluids, including air, water, gas, petroleum, and petrochemical products and aggressive fluids.  They are available in both 2 way and 3-way configurations.

Split body wafer type ball valve specification

1/2″ – 12″ (inches) sizes available
ISO 5211 Actuator Mounting Pad
Body: WCB, CF8,CF8M, A105,F304,F316
Ball: F316/F304
Stem: Blow-out-proof design as standard, SS304/316 or other material
Temperature Rating: -20 °C to 400°F
Working Pressure: Class 150/300, PN10-40, JIS 10k/20k
Face-to-Face: ANSI B16.10, DIN3202 and JIS B2002
Flange Dimensions: ANSI B16.5, DIN2632/2633 & DIN2634/2635 and JIS B2212
TEST STANDARD: API 598, EN12266, and ISO5208
Pneumatic or electric actuator as option
Anti – Static Device as option
API 607 fire safe design as option
Gland or Belleville washers as option for packing
V-ring adjustable stem packing as option
