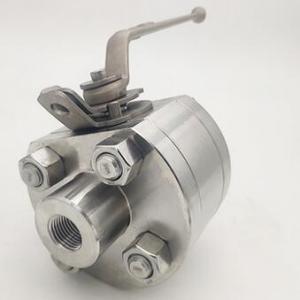

Super Duplex 2507 Ball Valve

Super Duplex 2507 Ball Valve Product introduction

　China Super Duplex 2507 Ball Valve Manufacturer, Factory and Supplier. Super Duplex 2507 Ball Valve is full or reduced bore design with 2PC or 3PC body for floating or trunnion mounted structure, Super Duplex 2507 Ball Valve has excellent resistance to point, crack and uniform corrosion, and are highly resistant to stress corrosion cracking.Super Duplex 2507 Ball Valve is used in water treatment, seawater desalination, chemical and other places where corrosion resistance is required.

Super Duplex 2507 Ball Valve specification
Pressure Class: PN1.6-42.0 MPA CLASS150-2500lb
Nominal size: DN15-DN600 1/2"-24"
Connection:Threaded end, SW,BW, Flanged end
Driving mode: handle, worm gear, pneumatic, hydraulic, electric
Applicable medium: oxidizing corrosive medium.
Design standard: GB/T12237, API6D, ASME B16.34
Structure length: GB/T12221, API6D, ASME B16.10
Flanges: HG, GB, JB, API, ANSI, ISO, BS, DIN, NF, JIS
Test standard: JB/T9092, GB/T13927, API6D, API598
