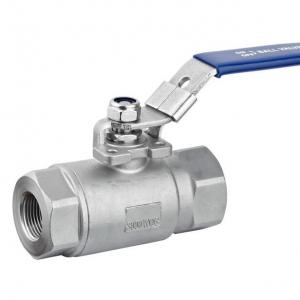

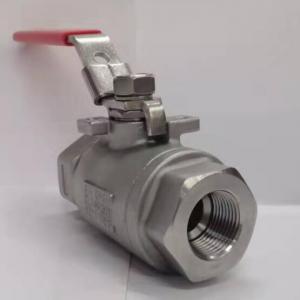

Threaded end 3000 WOG ball valve

Threaded end 3000 WOG ball valveThreaded end 3000 WOG ball valve
Threaded end 3000 WOG ball valve

Threaded end 3000 WOG ball valve Product introduction

China threaded 3000 WOG ball valve manufacturer, factory and supplier. Threaded end 3000 WOG ball valve can bear max. 210 bar working pressure, NPT,BSP,RC threaded end with WCB, 304SS, 316SS or other material is optional. Threaded end 3000 WOG ball valve can be used in sanitary, corrosive, or industrial applications for (at ambient temperature) water, oil, or gas and steam. Threaded end 3000 WOG ball valve has blow-out proof stems with a WCB 304 SS 316SS body and ball and a 304SS pad-lockable handle. ISO 5211 mounting pad is optional for lever, electric or pneumatic actuator.

Threaded end 3000 WOG ball valve specification
Type: Ball Valve, 2 piece or 3 piece, Full Port
Size: 3/8"-4''
Rating: 3000 WOG (Other pressure class is optional)
Connection: Threaded (NPT,BSP,RC) or welded end (SW,BW) is optional
Body Material: WCB, 304SS 316SS or other material
Ball: WCB, 304SS 316SS or other material
Stem: 304SS 316SS or other material
Seats: PTFE
Minimal pressure drop due to large full size ports
Suitable for full range of liquids and gas
Temperature range : -40 to 400 degree Fahrenheit
Low operation torque
Blowout-proof stem
FxF NPT Threaded ends to ANSI B1.20.1
Heavy duty locking handles
ISO 5211 mounting pad for lever, electric or pneumatic actuator
