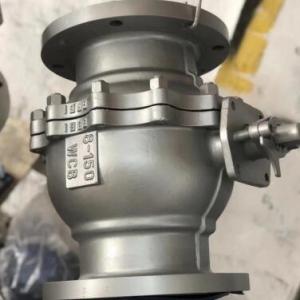

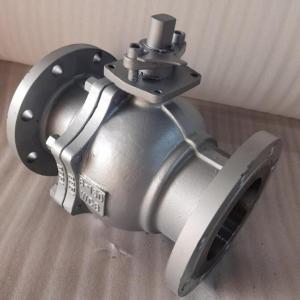

WCB 150LB Floating ball valve 8 inch

WCB 150LB Floating ball valve 8 inchWCB 150LB Floating ball valve 8 inch
WCB 150LB Floating ball valve 8 inch

WCB 150LB Floating ball valve 8 inch Product introduction

 WCB 150LB Floating ball valve 8 inch can be used respectively for water, steam, oil, nitric acid, acetic acid, oxidizing medium, urea and other medium.WCB 150LB Floating ball valve 8 inch can be widely used in papermaking, petrochemical, chemical industry, metallurgy, electric power, environmental protection, petroleum, light industry and other industrial departments of automatic control system.

WCB 150LB Floating ball valve 8 inch Specification:
Product Name WCB 150LB Floating ball valve 8 inch
1. Material WCB 304 316 CF8 CF8M or others
2. Size 1/2~12 inch ( DN15~DN300)
3. Port Full Port or reduced port
4. Working Pressure 150LB~600LB
5. Connection Ends Flange or others
6. Working Temp.  -29~150℃,-40~450℃, or according to customer requirements for different industry.
7. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
8. Operation Handle operated, Locking device is option
9. Inspection & Testing According to API598

WCB 150LB Floating ball valve 8 inch Technical Specification:
1. Design & Manufacture standard: API 6D, API 608, BS 5351.
2. Pressure & Temperature standard: ASME B16.34.
3. Face to face dimension standard: ASME B16.10.
4. Flange standard: ASME B16.5, ASME B16.47.
5. Test & Inspect standard: API 598, API 6D.


WCB 150LB Floating ball valve 8 inch performance:
1. Floating ball, full bore or reduce bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
