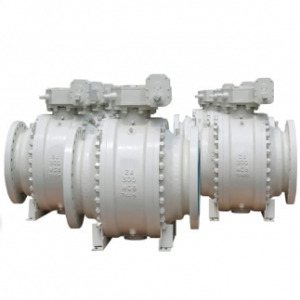

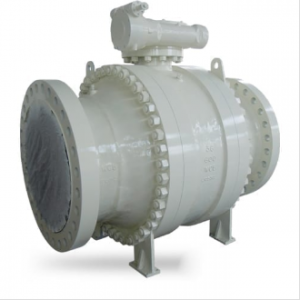

WCB A105 Trunnion ball valve 24 Inch

WCB A105 Trunnion ball valve 24 InchWCB A105 Trunnion ball valve 24 Inch
WCB A105 Trunnion ball valve 24 Inch

WCB A105 Trunnion ball valve 24 Inch Product introduction

 China trunnion ball valve manufacturer,factory,company and supplier for WCB A105 trunnion ball valve 24 inch,which is trunnion mounted structure, 3PC split body,full bore or reduced bore with different material and different pressure class.


WCB A105 trunnion ball valve 24 inch specification

Product Name WCB A105 trunnion ball valve 24 inch
1. Material A351 CF8M/CF8/CF3, A216 WCB, A352 LCB/LCC
2. Size 2''~48'' ( DN50~DN1200)
4. Port Full Port
5. Working Pressure 150LB~2500LB
6. Connection Ends Flange
7. Working Temp. -196ºC~450ºC
8. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
9. Seal PTFE, RPTFE, PPL
10. Locking Option
11. Inspection & Testing According to API598

WCB A105 trunnion ball valve 24 inch feature

Full Bore & Reduced Bore
Anti-static Device
Blow-out Proof Stem
Fire Safe Design
Emergency Sealant Injector
Vent Valve, Drain Valve
Lifting lugs and supporting feets(8" & larger)
Optional Lockable Handle Lever; Gear Box, Electric, Pneumatic & Hydraulic


WCB A105 trunnion ball valve 24 inch standard
Design And Manufacture : ASME B16.34/API 6D
Valve Structural Length : ASME B16.10
Flange Connection Dimension : ASME B 16.5
Valve Check Up And Manufacture Test: API 598
Fire Safe Test: API 607/API6FA
Special: NACE MR-01-75
