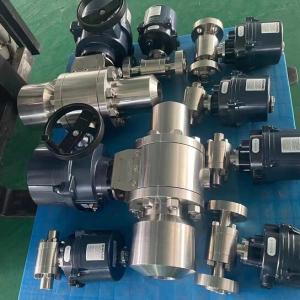

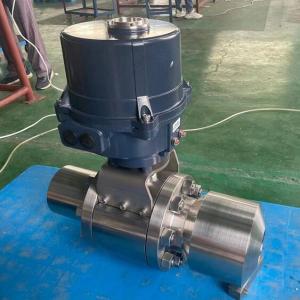

Motorized high pressure ball valve

Motorized high pressure ball valveMotorized high pressure ball valve
Motorized high pressure ball valve

Motorized high pressure ball valve Product introduction

 China motorized high pressure ball valve manufacturer, factory and supplier. Motorized high pressure ball valve is composed of 1500LB 2500LB, PN250 PN320 PN420,5000 PSI 6000PSI 10000 PSI 15000 PSI high pressure ball valve and on-off or regulating electric actuator. Motorized high pressure ball valve is specifically designed for high pressure applications. Motorized high pressure ball valve could be equipped with modulating or on-off electric actuator. Available in local / remote control electric actuator with LCD display screen to achieve the goal of industrial automation.

Motorized high pressure ball valve specification:
Ball valve size: 1/2" ~ 12" (DN15-DN300)
Pressure: 1500LB 2500LB, PN250 PN320 PN420,5000 PSI 6000PSI 10000 PSI 15000 PSI or others

Temperature for ball valve:  -29ºC~ 150ºC,-46ºC~ 450ºC
Body Materials: A105,F316L, F316, F304 or other forged steel

Trim: A105,F316L, F316, F304 or other forged steel
Design: BS5351, ANSI B16.34, DIN, JIS
Mounting Pad of electric ball valve: ISO5211

Motorized high pressure ball valve technical paratameter:
Applicable temperature -29 ° C ~ +180 ° C or -46 ° C ~ +450 ° C
Connection method threaded, butt welding, socket welding,flanged end
Body material A105, F316L, F316, F304 or other forged steel
Sealing material PTFE, high pressure nylon,Devlon, PEEK,metal seated
Control mode switch type, intelligent adjustment type
Power supply voltage 220V AC single phase, 110V AC single phase,
380/440V AC three phase, 24V/110V/220V AC
Output torque 50N·M~2000N·M, High torque is optional.
Action time 15 seconds / 30 seconds / 60 seconds, etc
Protection device overheat protection,overload protection
Ambient temperature -30 ℃ ~ 60 ℃
Protection level  IP65, IP55, IP65, IP67
