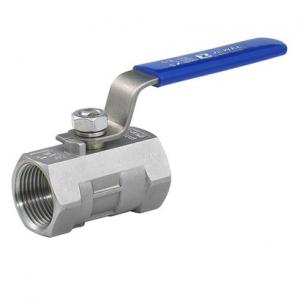

Q11F Thread ball valve

Q11F Thread ball valve Product introduction

China thread end ball valve manufacturer, factory and supplier, Q11F Thread ball valve can be 1 PC, 2PCS, 3PCS design with different material, simple structure, cheap price, easy installation.

Product specifications: 1/4"" - 4""(DN6-DN100)
Work pressure: 1000psi
Applicable temperature: -20~232~350
Types of thread: G. NPT. BSPT. BSP. DI259/2999
Nominal pressure PN(Mpa): 1.6-6.4MPa
Applicable medium: Water oil gas acid
Connection mode: Threaded
Flowing direction: Two-way

	Pipe thread	Dimension（mm）						WT（g）
	Pipe thread	d	L	W	H	E	D	D
6	1/4″	8	60	110	56	11.5	30	320
10	3/8″	18	60	110	58	11.5	31	320
15	1/2″	10.5	60	110	58	14	32	350
20	3/4″	13	67.5	110	62	15	38	430
25	1″	17	73	110	68	15	45	570
32	1 1/4″	22	90	150	75	18	53.4	1000
40	1 1/2″	25	97.5	150	83	19	63	1550
50	2″	32	112	150	90	19	73	2170
65	2 1/2″	40	132	180	95	21	92	3625
80	3″	50	156	220	100	27	109	5800
100	4″	65	196	250	115	29	138	7200

Q11F Thread ball valve Technical parameters

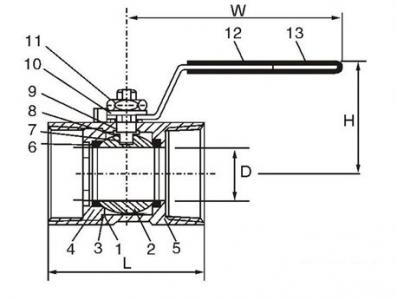

Q11F Thread ball valve Main dimension

DN	Pipe thread	Dimension（mm）						WT（g）
DN	Pipe thread	d	L	W	H	E	D	D
6	1/4″	8	60	110	56	11.5	30	320
10	3/8″	18	60	110	58	11.5	31	320
15	1/2″	10.5	60	110	58	14	32	350
20	3/4″	13	67.5	110	62	15	38	430
25	1″	17	73	110	68	15	45	570
32	1 1/4″	22	90	150	75	18	53.4	1000
40	1 1/2″	25	97.5	150	83	19	63	1550
50	2″	32	112	150	90	19	73	2170
65	2 1/2″	40	132	180	95	21	92	3625
80	3″	50	156	220	100	27	109	5800
100	4″	65	196	250	115	29	138	7200
