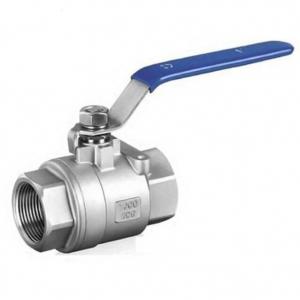

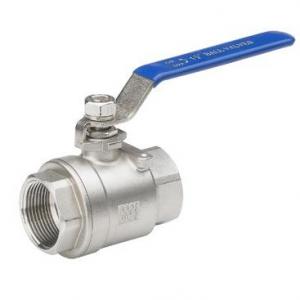

2 PCS Thread ball valve

2 PCS Thread ball valve2 PCS Thread ball valve
2 PCS Thread ball valve

2 PCS Thread ball valve Product introduction

2 PCS Thread ball valve

2 PCS Thread ball valve Technical parameters


2 PCS Thread ball valve Main dimension

DN Pipe thread Dimension(mm) WT(g)
d L W H E D D
6 1/4″ 8 60 110 56 11.5 30 320
10 3/8″ 18 60 110 58 11.5 31 320
15 1/2″ 10.5 60 110 58 14 32 350
20 3/4″ 13 67.5 110 62 15 38 430
25 1″ 17 73 110 68 15 45 570
32 1 1/4″ 22 90 150 75 18 53.4 1000
40 1 1/2″ 25 97.5 150 83 19 63 1550
50 2″ 32 112 150 90 19 73 2170
65 2 1/2″ 40 132 180 95 21 92 3625
80 3″ 50 156 220 100 27 109 5800
100 4″ 65 196 250 115 29 138 7200
