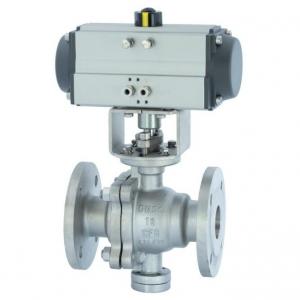

Q647F Pneumatic trunnion mounted ball valve Product introduction
Q647F Pneumatic trunnion mounted ball valve is 2PC or 3 PC structure with trunnion mounted ball fesign made by cast steel or forged steel, Pneumatic trunnion mounted ball valve is a rotary valve of 90° Angle, excellent sealing performance, large flow coefficient, small flow resistance coefficient, simple structure, long service life, easy maintenance.Pneumatic actuator of Q647F Pneumatic trunnion mounted ball valve adopts AT series piston pneumatic actuator for small size ball valve or AW series piston pneumatic actuator.Equipped with actuators, ball valve single - action and double - action two models.Pneumatic trunnion mounted ball valve is widely used in chemical industry, petroleum, light textile, electric power, food pharmaceutical, refrigeration, paper industry system control.
Q647F Pneumatic trunnion mounted ball valve specification
-Valve size: 2" ~ 24" (DN50-DN600)
-Pressure: ANSI Class 150~2500(PN16-PN420)
-Temperature: -46ºC~ 450ºC
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
Trim: Carbon Steel, Stainless Steel, Duplex Steel
Design: BS5351, ANSI B16.34, DIN, JIS
Mounting Pad: ISO5211
Pneumatic Actuator Air Supply: 3bar~7bar
