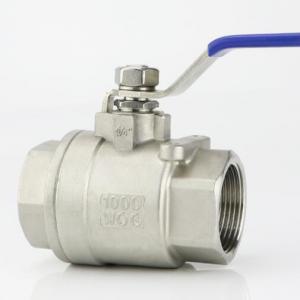

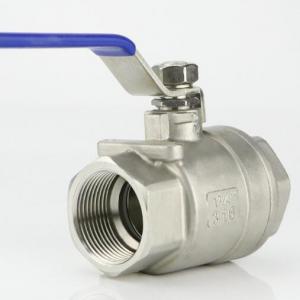

2 Piece threaded 1000 WOG ball valve

2 Piece threaded 1000 WOG ball valve2 Piece threaded 1000 WOG ball valve
2 Piece threaded 1000 WOG ball valve

2 Piece threaded 1000 WOG ball valve Product introduction

 China Threaded 1000 WOG ball valve manufacturer, factory and supplier. 2 Piece threaded 1000 WOG ball valve is used in sanitary, corrosive, or industrial applications where brass ball valves are not suitable. 2 Piece threaded 1000 WOG ball valve has blow-out proof stems with a 304 SS 316SS body and ball and a 304SS pad-lockable handle. 2 Piece threaded 1000 WOG ball valve is suitable for 1000 psi (at ambient temperature) water, oil, or gas and steam.

2 Piece threaded 1000 WOG ball valve Specification
Type: Ball Valve, 2-Piece, Full Port
Size: 3/8"-4''
Rating: 1000 WOG (Other pressure class is optional)
Connection: Threaded (NPT,BSP,RC)
Body Material: WCB, 304SS 316SS or other material
Ball: WCB, 304SS 316SS or other material
Stem: 304SS 316SS or other material
Seats: PTFE
Minimal pressure drop due to large full size ports
Suitable for full range of liquids and gas
Temperature range : -40 to 400 degree Fahrenheit
Low operation torque
Blowout-proof stem
FxF NPT Threaded ends to ANSI B1.20.1
Heavy duty locking handles

ISO 5211 mounting pad or lever, electric or pneumatic actuator.
