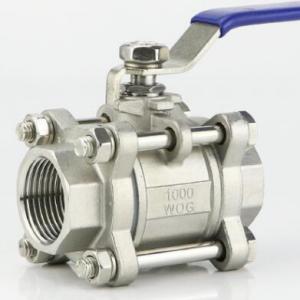

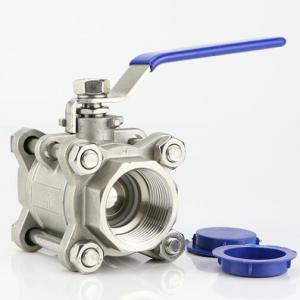

3 Piece 1000 WOG threaded ball valve

3 Piece 1000 WOG threaded ball valve3 Piece 1000 WOG threaded ball valve
3 Piece 1000 WOG threaded ball valve

3 Piece 1000 WOG threaded ball valve Product introduction

 China 1000 WOG Threaded ball valve manufacturer, factory and supplier. 3 Piece 1000 WOG threaded ball valve is used in sanitary, corrosive, or industrial applications where brass ball valves are not suitable. 3 Piece 1000 WOG threaded ball valve has blow-out proof stems with a 304 SS 316SS body and ball and a 304SS pad-lockable handle. 3 Piece 1000 WOG threaded ball valve is suitable for 1000 psi (at ambient temperature) water, oil, or gas and steam.

3 Piece 1000 WOG threaded ball valveSpecification
Type: Ball Valve, 3-Piece, Full Port
Size: 3/8"-4''
Rating: 1000 WOG (Other pressure class is optional)
Connection: Threaded (NPT,BSP,RC)
Body Material: WCB, 304SS 316SS or other material
Ball: WCB, 304SS 316SS or other material
Stem: 304SS 316SS or other material
Seats: PTFE
Minimal pressure drop due to large full size ports
Suitable for full range of liquids and gas
Temperature range : -40 to 400 degree Fahrenheit
Low operation torque
Blowout-proof stem
FxF NPT Threaded ends to ANSI B1.20.1
Heavy duty locking handles
