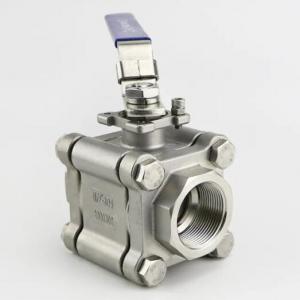

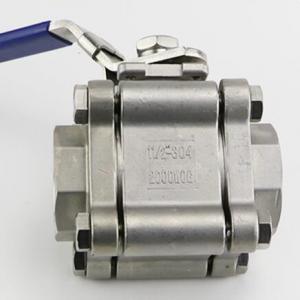

3 Piece 2000 WOG threaded ball valve

3 Piece 2000 WOG threaded ball valve3 Piece 2000 WOG threaded ball valve
3 Piece 2000 WOG threaded ball valve

3 Piece 2000 WOG threaded ball valve Product introduction

China 2000 PSI, 2000 WOG ball valve manufacturer, factory and supplier. 3 Piece 2000 WOG threaded ball valve can be NPT,BSP,RC threaded end with WCB, 304SS, 316SS or other material is optional.3 Piece 2000 WOG threaded ball valve can be used in sanitary, corrosive, or industrial applications for (at ambient temperature) water, oil, or gas and steam. 3 Piece 2000 WOG threaded ball valve has blow-out proof stems with a WCB 304 SS 316SS body and ball and a 304SS pad-lockable handle. ISO 5211 mounting pad is optional for lever, electric or pneumatic actuator.

3 Piece 2000 WOG threaded ball valve specification
Type: Ball Valve, 3 Piece, Full Port
Size: 3/8"-4''
Rating: 2000 WOG (Other pressure class is optional)
Connection: Threaded (NPT,BSP,RC) or welded end (SW,BW)
Body Material: WCB, 304SS 316SS or other material
Ball: WCB, 304SS 316SS or other material
Stem: 304SS 316SS or other material
Seats: PTFE
Minimal pressure drop due to large full size ports
Suitable for full range of liquids and gas
Temperature range : -40 to 400 degree Fahrenheit
Low operation torque
Blowout-proof stem
FxF NPT Threaded ends to ANSI B1.20.1
Heavy duty locking handles
ISO 5211 mounting pad for lever, electric or pneumatic actuator
