2 PC threaded 2000 WOG ball valve

2 PC threaded 2000 WOG ball valve2 PC threaded 2000 WOG ball valve
2 PC threaded 2000 WOG ball valve

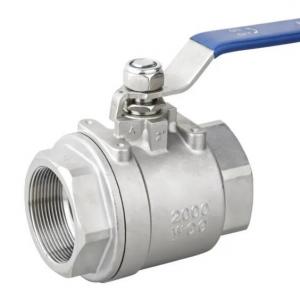

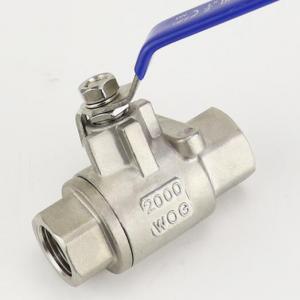

2 PC threaded 2000 WOG ball valve Product introduction

 China 2000 WOG ball valve manufacturer, factory and supplier. 2 PC threaded 2000 WOG ball valve can be NPT,BSP,RC threaded end with WCB, 304SS, 316SS or other material is optional. 2 PC threaded 2000 WOG ball valve can be used in sanitary, corrosive, or industrial applications for (at ambient temperature) water, oil, or gas and steam. 2 PC threaded 2000 WOG ball valve has blow-out proof stems with a WCB 304 SS 316SS body and ball and a 304SS pad-lockable handle. ISO 5211 mounting pad is optional for lever, electric or pneumatic actuator.

2 PC threaded 2000 WOG ball valve Specification
Type: Ball Valve, 2 Piece, Full Port
Size: 3/8"-4''
Rating: 2000 WOG (Other pressure class is optional)
Connection: Threaded (NPT,BSP,RC) or welded end (SW,BW)
Body Material: WCB, 304SS 316SS or other material
Ball: WCB, 304SS 316SS or other material
Stem: 304SS 316SS or other material
Seats: PTFE
Minimal pressure drop due to large full size ports
Suitable for full range of liquids and gas
Temperature range : -40 to 400 degree Fahrenheit
Low operation torque
Blowout-proof stem
FxF NPT Threaded ends to ANSI B1.20.1
Heavy duty locking handles
ISO 5211 mounting pad for lever, electric or pneumatic actuator
