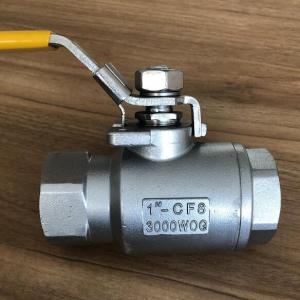

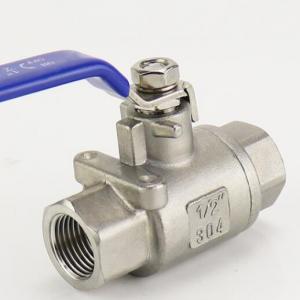

304SS 316SS 3000 PSI NPT ball valve

304SS 316SS 3000 PSI NPT ball valve304SS 316SS 3000 PSI NPT ball valve
304SS 316SS 3000 PSI NPT ball valve

304SS 316SS 3000 PSI NPT ball valve Product introduction

 China stainless steel 3000 PSI ball valve manufacturer, factory and supplier. 304SS 316SS 3000 PSI NPT ball valve is CF8 or CF8M casting body with NPT,BSP,RC threaded end. 304SS 316SS 3000 PSI NPT ball valve can be used in sanitary, corrosive, or industrial applications for (at ambient temperature) water, oil, or gas and steam. 304SS 316SS 3000 PSI NPT ball valve has blow-out proof stems with a 304 SS 316SS body and ball and a 304SS pad-lockable handle. ISO 5211 mounting pad is optional for lever, electric or pneumatic actuator.

304SS 316SS 3000 PSI NPT ball valve specification
Type: Ball Valve, 2 piece or 3 piece, Full Port
Size: 3/8"-2''
Rating: 3000 WOG,3000 PSI (Other pressure class is optional)
Connection: Threaded (NPT,BSP,RC) or welded end (SW,BW)
Body Material: WCB, 304SS 316SS or other material
Ball: WCB, 304SS 316SS or other material
Stem: 304SS 316SS or other material
Seats: PTFE
Minimal pressure drop due to large full size ports
Suitable for full range of liquids and gas
Temperature range : -40 to 400 degree Fahrenheit
Low operation torque
Blowout-proof stem
FxF NPT Threaded ends to ANSI B1.20.1
Heavy duty locking handles
ISO 5211 mounting pad for lever, electric or pneumatic actuator
