4 way ball valve manufacturer

4 way ball valve manufacturer4 way ball valve manufacturer
4 way ball valve manufacturer

4 way ball valve manufacturer Product introduction

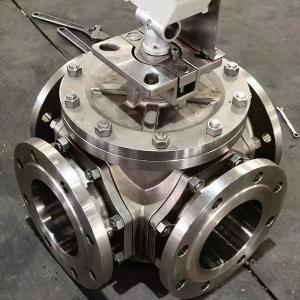

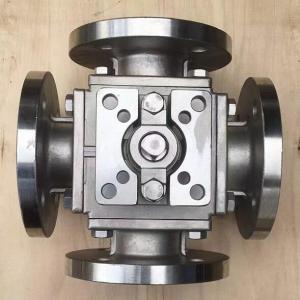

 4 Way Ball Valve Manufacturer, China 4 Way Ball Valve factory and supplier. 4 Way Ball Valve is offered with L-L port or Double L Port structure. 4 Way Ball Valve is used when two right-angle diversions have to be done using one single valve. 4 Way Ball Valve will have two inlets and two outlets at any given time. The balls inside the valve are precisely machined to achieve this objective. Our 4 Way Ball Valve in Carbon Steel, Stainless Steel and others metal on special request. 4 way ball valve selection covers Full Port (Full Bore), Flanged End, with Manual Hand Lever, Gear Box, Pneumatic Actuator, Electrical Actuator Operation.

4 Way Ball Valve Specification:

Product Name 4 way ball valve
1. Material SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M),etc.
2. Size 1/2~16 inch ( DN15~DN400)
3. Port Full Port
4. Working Pressure 150LB~600LB
5. Connection Ends Flange
6. Working Temp.  -29~180℃,-40~450℃ or according to customer requirements for different industry.
7. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
8. Operation Handle operated, Locking device is option
9. Inspection & Testing According to API598,JB/T9092

4 Way Ball Valve Product Feature:
1. Floating ball, full bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
5. Fire-proof and anti-static design if need.
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
