ADLER Ball Valve Wafer Type FA2 Product introduction

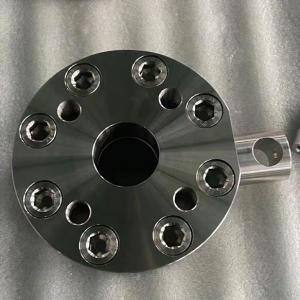

China wafer type ball valve manufacturer, factory and supplier for Adler FA2 type split body wafer ball valve. ADLER Ball Valve Wafer Type FA2 is 2 piece split forged body,which is manufactured in both forged carbon steel and stainless steel variations. ADLER Ball Valve Wafer Type FA2 is suitable for intercepted fluids, including air, water, gas, petroleum, and petrochemical products and aggressive fluids.

ADLER Ball Valve Wafer Type FA2 specification:
1/2″ – 12″ (inches) sizes available
ISO 5211 Actuator Mounting Pad
Body: WCB, CF8,CF8M, A105,F304,F316
Ball: F316/F304
Stem: Blow-out-proof design as standard, SS304/316 or other material
Temperature Rating: -20 °C to 400°F
Working Pressure: Class 150/300, PN10-40, JIS 10k/20k
Face-to-Face: ANSI B16.10, DIN3202 and JIS B2002
Flange Dimensions: ANSI B16.5, DIN2632/2633 & DIN2634/2635 and JIS B2212
TEST STANDARD: API 598, EN12266, and ISO5208
Pneumatic or electric actuator as option
Anti – Static Device as option
API 607 fire safe design as option
Gland or Belleville washers as option for packing
V-ring adjustable stem packing as option
Manual, electric, pneumatic actuator is optional.
