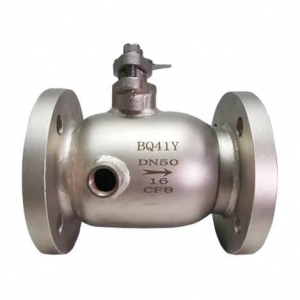

BQ41F BQ41Y Steam jacketed ball valve Product introduction
BQ41F BQ41Y Steam Jacketed Ball Valve is produced in carbon steel and different types of stainless steel materials. Other special materials are available upon special request.BQ41F Soft seated steam jacketed Ball Valve gives Zero Leakage, Tight Shut-Off and Low Torque with easy smooth operation at temperature ranging from -20° C. to +220° C.BQ41YMetal seated steam jacketed ball valve is also can be produced for high temperature medium.
BQ41F BQ41Y Steam Jacketed ball valve operation: thermal insulation jacket ball valve is generally supplied with manual hand lever or gear unit operated, depending on valve size. We also supply steam jacketed Ball Valves with either Pneumatic or Electrical actuator operated for automation.
BQ41F BQ41Y Steam jacketed ball valve specificatiion
Size range: DN15x 25 To DN250 x 300, NPS ½" x 1" To 10" x 12"
Pressure level:PN10~PN100, CL150~CL600
Design standard: API608, ASME B16.34
Connection mode: RF, RTJ, BW
Structure: Single Piece or two pieces Design
Bore: Regular (Reduce) Bore Fully Jacketed Ball Valve
Main material: carbon steel, alloy steel, stainless steel, duplex steel, nickel base alloy, etc
Operation:Manual,pneumatic,electric actuator
Applicable medium: water, steam, oil, corrosive medium, etc
BQ41F BQ41Y Steam jacketed ball valve standard
Design and manufacturing standards: GB/T12224, ASME B 16.34
Structural length standard: GB/T 12221-2005, ASME B 16.10
Connection flange standard: JB/T 79, GB/T 9113, ASME B 16.5
Pressure and temperature class: GB/T 12224-2005
Test standard: GB/T 13927-2008, JB/T9092, API 598
