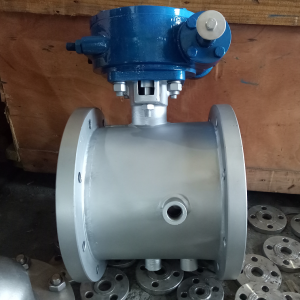

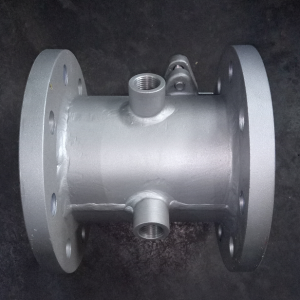

Fully jacketed ball valve

Fully jacketed ball valve Product introduction

Fully Jacketed Ball Valve is produced in carbon steel and different types of stainless steel materials. Other special materials are available upon special request.Soft seated fully jacketed Ball Valve gives Zero Leakage, Tight Shut-Off and Low Torque with easy smooth operation at temperature ranging from -20° C. to +220° C.Metal seated fully jacketed ball valve is also can be produced for high temperature medium.
Fully Jacketed ball valve operation: thermal insulation jacket ball valve is generally supplied with manual hand lever or gear unit operated, depending on valve size. We also supply steam jacketed Ball Valves with either Pneumatic or Electrical actuator operated for automation.

Fully jacketed ball valve specificatiion
Size range: DN15x 25 To DN250 x 300, NPS ½" x 1" To 10" x 12"
Pressure level:PN10~PN100, CL150~CL600
Design standard: API608, ASME B16.34
Connection mode: RF, RTJ, BW
Structure: Single Piece or two pieces Design
Bore: Regular (Reduce) Bore Fully Jacketed Ball Valve
Main material: carbon steel, alloy steel, stainless steel, duplex steel, nickel base alloy, etc
Operation:Manual,pneumatic,electric actuator
Applicable medium: water, steam, oil, corrosive medium, etc

Fully jacketed ball valve standard
Design and manufacturing standards: GB/T12224, ASME B 16.34
Structural length standard: GB/T 12221-2005, ASME B 16.10
Connection flange standard: JB/T 79, GB/T 9113, ASME B 16.5
Pressure and temperature class: GB/T 12224-2005
Test standard: GB/T 13927-2008, JB/T9092, API 598

For more jacketed valve information, you can visit our website: www.jacketvalve.com
