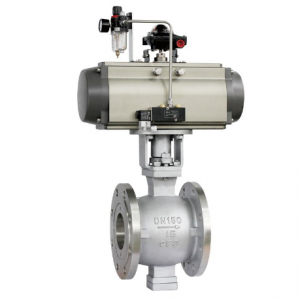

Pneumatic V port segment ball valve

Pneumatic V port segment ball valve Product introduction

Pneumatic V port segment ball valve is compased of pneumatic actuator (double acting or single acting) and V port segmented ball valve (flange type or wafer type) has the V type gap in the segmented ball valve plug which will do wedge-shaped sheared action when the Pneumatic actuated stainless steel segmented ball valve is closed, which not only has self-cleaning function but also can prevent being stuck from the dirt between plug and seat.Pneumatic V port segment ball valve is not only for the general media but also special for controlling the medium of slurry, drainage, fiber and small particles.
Pneumatic V port segment ball valve equipped with pneumatic or electric actuator can meet various control requirements, Pneumatic actuated stainless steel segmented ball valve is widely used in the control systems of electric power, petroleum, chemical, metallurgy and papermaking.

Pneumatic V port segment ball valve main technical data:

Model
Structure	Segment ball
Nominal Diameter	Wafer type 1/2”~10” (DN15~DN250), Flange type: 1”~28”(DN25~DN700)
Pressure Rating	ASME Class 150 ~ CLASS 300
Connection	Flange Type (RF、RTJ、FM）、Wafer type
Body Material	WCB, WCC, WC6, WC9, LCB, CF8, CF8M, CF3 .etc
Trim Material	Carbon steel、304、316、316L、17-4PH
Packing	PTFE, Flexible Graphite
Washer	Serrated washer (extremely soft CS, SUS316.etc), wound gaskets
Characteristic	EQP, Quick open
Ratio	100:1
Seal Surface	Soft seal 、 Metal seal
Travel	90°
Coating	Black for Carbon Steel, Stainless steel without coating
