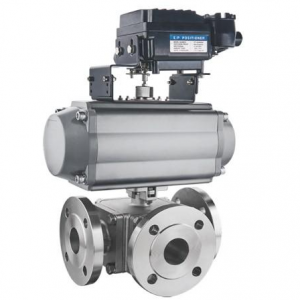

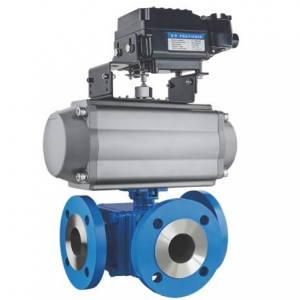

Three way pneumatic ball valve

Three way pneumatic ball valveThree way pneumatic ball valve
Three way pneumatic ball valve

Three way pneumatic ball valve Product introduction

 Three way pneumatic ball valve composed of flange,threaded or welded end three way ball valve and double acting or single acting pneumatic actuator,Three way pneumatic ball valve is used for medium diversion, confluent and flow direction switching, any pipe can be used as an inlet or outlet.Thread 3 way ball valve with pneumatic actuator divided into pneumatic 3 way L port ball valve and pneumatic 3 way T port  ball valve, Thread 3 way ball valve with pneumatic actuator can meet different production process requirements.Pneumatic three way L type ball valve is to cut off two of the three pipelines, and pneumatic three way T type ball valve realizes the confluent and diverging of the three connected pipelines.Pneumatic three way regulating ball valve is matched with electric valve positioner, and the operation can be controlled by inputting 4 ~ 20mADC signal and 0.4 ~ 0.7mpa air source, so as to realize the adjustment of pressure, flow, temperature, liquid level and other parameters.Three way pneumatic ball valve stroke limit switch, solenoid valve, pressure reducing valve and air source of 0.4-0.7mpa can realize switch operation, and send two pairs of passive contact signals indicating the valve switch.Three way pneumatic ball valve is widely used in chemical industry, petroleum, light textile, electric power, food pharmaceutical, refrigeration, aviation, aerospace, papermaking and other industrial fields.

Three way pneumatic ball valve product range:
-Ball valve size: 1/2" ~ 24" (DN25-DN600)
-Pressure: ANSI Class 150~600(PN16-PN100)
-Temperature: -46ºC~ 450ºC
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
Trim: Carbon Steel, Stainless Steel, Duplex Steel
Pneumatic automated ball valve Design: BS5351, ANSI B16.34, DIN, JIS
Pneumatic automated ball valve Mounting Pad: ISO5211
Pneumatic Actuator Air Supply: 3bar~7bar

Three way pneumatic ball valve actuator information:
1). Pressure Range: Max. Working pressure 10bar
2). Air pressure: 2.5bar~8bar
3). Adjustment Range: 90° ± 5°
4). Ambient temperature: -20 ~ +90° C
5). Type: Double-acting, Single-acting (spring return)
6). Optional accessories: Solenoid valve, limite switch, electric position, air regulator
7). Lubrication: All the moving parts are coated with lubricants, extending their service life
8). Life Time: One million time
