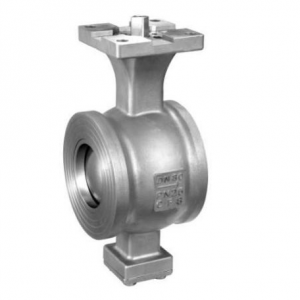

Wafer type segmented ball valve features a characterized ball segment for high rangeability with splined stem connection for precise control, maintenance friendly segment-stem assembly, low friction shaft and thrust bearings for longer life, integral actuator mounting pads, and interchangeable seats.

Wafer type segmented ball valve body design:

• One piece body design which offers greater rigidity against fluctuating pipe loads.
• Eliminates the leak path associated with two piece body designs.
• Available in Flangeless and Flanged Ends.

• Carefully designed with characterized V-port to offer rangeability in excess of 300:1, ideal for throttling applications in high consistency pulp services or slurry applications.
• Perfectly ground spherical surface with rounded edges ensure lower operating torques for metal seated valves.
• Hard coated spherical surface prevents galling.
• The segment is carefully designed for optimum flow.
• The seat  of Wafer type segmented ball valve is supported during higher openings to prevent rocking motion and possible failure of the valve.
