China 2000 PSI WOG ball valve

China 2000 PSI WOG ball valveChina 2000 PSI WOG ball valve
China 2000 PSI WOG ball valve

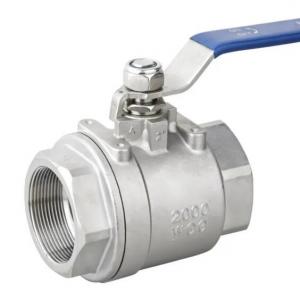

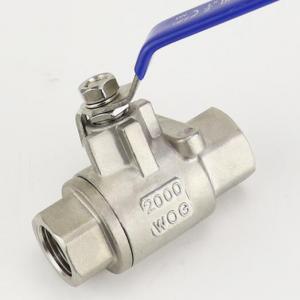

China 2000 PSI WOG ball valve Product introduction

 China 2000 PSI WOG ball valve manufacturer, factory and supplier. 2000 PSI WOG ball valve can be threaded end, welded end with 2pc or 3pc body, WCB, 304SS, 316SS or other material is optional. 2000 PSI WOG ball valve is used in sanitary, corrosive, or industrial applications for (at ambient temperature) water, oil, or gas and steam. 2000 PSI WOG ball valve has blow-out proof stems with a WCB 304 SS 316SS body and ball and a 304SS pad-lockable handle. ISO 5211 mounting pad is optional for lever, electric or pneumatic actuator

China 2000 PSI WOG ball valve Specification
Type: Ball Valve, 2 or 3-Piece, Full Port
Size: 3/8"-4''
Rating: 2000 WOG (Other pressure class is optional)
Connection: Threaded (NPT,BSP,RC) or welded end (SW,BW)
Body Material: WCB, 304SS 316SS or other material
Ball: WCB, 304SS 316SS or other material
Stem: 304SS 316SS or other material
Seats: PTFE
Minimal pressure drop due to large full size ports
Suitable for full range of liquids and gas
Temperature range : -40 to 400 degree Fahrenheit
Low operation torque
Blowout-proof stem
FxF NPT Threaded ends to ANSI B1.20.1
Heavy duty locking handles
ISO 5211 mounting pad for lever, electric or pneumatic actuator
