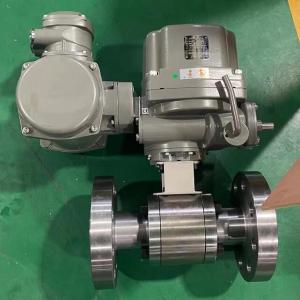

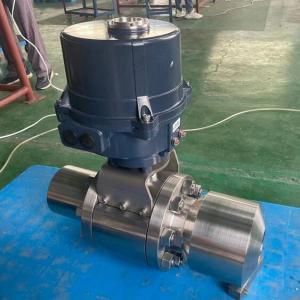

Forged ball valve with electric actuator

Forged ball valve with electric actuatorForged ball valve with electric actuator
Forged ball valve with electric actuator

Forged ball valve with electric actuator Product introduction

 China forged steel high pressure ball valve manufacturer, factory and supplier. Forged ball valve with electric actuator is composed of A105 F304 F316 F51 F53 or other forged steel ball valve and on-off or regulating electric actuator. Forged ball valve with electric actuator is specifically designed for high pressure applications. Forged ball valve with electric actuator could be equipped with modulating or on-off electric actuator. Available in local / remote control electric actuator with LCD display screen to achieve the goal of industrial automation.

Forged ball valve with electric actuator specification:

Ball valve size: 1/2" ~ 124" (DN15-DN600)
Pressure: 150LB-2500LB, PN16-PN420,1000 PSI-15000 PSI or others

Temperature for ball valve:  -29ºC~ 150ºC,-46ºC~ 450ºC
Body Materials:  A105 F304 F316 F51 F53 or other forged steel

Trim:  A105 F304 F316 F51 F53 or other forged steel
Design: BS5351, ANSI B16.34, DIN, JIS
Mounting Pad of electric ball valve: ISO5211


Forged ball valve with electric actuator technical paratameter:
Applicable temperature -29 ° C ~ +180 ° C or -46 ° C ~ +450 ° C
Connection method threaded, butt welding, socket welding,flanged end
Body material A105 F304 F316 F51 F53 or other forged steel
Sealing material PTFE, high pressure nylon,Devlon, PEEK,metal seated
Control mode switch type, intelligent adjustment type
Power supply voltage 220V AC single phase, 110V AC single phase,
380/440V AC three phase, 24V/110V/220V AC
Output torque 50N·M~2000N·M, High torque is optional.
Action time 15 seconds / 30 seconds / 60 seconds, etc
Protection device overheat protection,overload protection
Ambient temperature -30 ℃ ~ 60 ℃
Protection level  IP65, IP55, IP65, IP67
