4 inch stainless steel swing check valve

4 inch stainless steel swing check valve4 inch stainless steel swing check valve
4 inch stainless steel swing check valve

4 inch stainless steel swing check valve Product introduction

 China swing check valve manufacturer,factory and supplier for 4 inch stainless steel swing check valve with flange end,the pressure from class 150LB to 2500LB, CF8,CF8M,CF3M,F51,F53,F55 stainless steel with size from 1/2 inch to 48 inch.

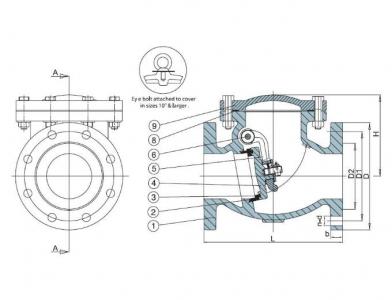

4 inch stainless steel swing check valve description:
Design Standard: API 6D, BS 1868.
Body Material: CF8 CF8M CF3M or other stainless steel.
Nominal Diameter: 4 Inch.
Pressure: 150-2500 LB.
End Connection: RF.
Face to Face: ASME B16.10.
Working Temperature: -29℃~+400℃.
Test and Inspection: API 598.

4 inch stainless steel swing check valve Product Range:
Body Material: Low Temperature Carbon Steel, Carbon Steel, Stainless Steel.
Normal Diameter: 2"~48" (DN50~DN1200).
End Connection: BW, Flanged.
Pressure Range: 150 Lb~2500 Lb (PN16~PN420).
Working Temperature: -196℃~+600℃.
