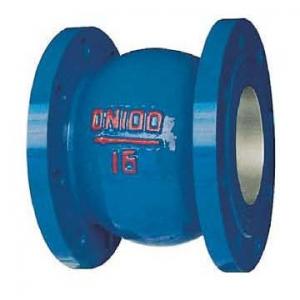

HC42X Silent check valve

HC42X Silent check valve Product introduction

HC42X Silent check valve manufacturer, factory and supplier. HC42X Silent check valve is automatic non-return valve. HC42X Silent check valve is used to secure one direction flow and prevent backflow in the water supply system. It eliminates pressure surge upon pump stopping without vibration and slamming noise.

HC42X Silent check valve Specification:

Medium applicable	Water, Oil etc.
Main material	Cast iron, Ductile ironI, WCB, WCC, SS304, SS316, CF8 etc
Temperature applicable	≤120ºC
Nominal Pressure	PN1.0--4.0Mpa or Class150
Nominal Diameter	1/2"- 40"
Flange Dimension	ASME B16.5, BS4504, ISO2531, ISO7005 and other standards conforming to the requirements
Face to Face Length	API594, BS5155, ISO5752, DIN

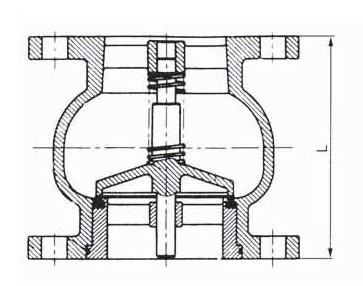

HC42X Silent check valve Main dimension

DN	300	350	400	450	500	600	700	800	900	1000	1200
L	181	184	191	203	219	222	280	356	368	432	524

HC42X Silent check valve Product order instruction
