H12W Screw vertical check valve

Drawing
Catalogue
Inquiry

H12W Screw vertical check valve Product introduction

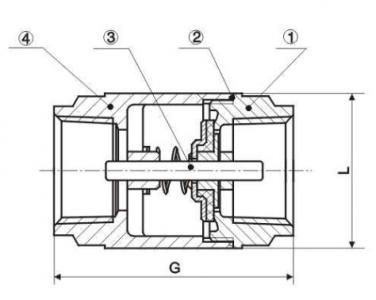

H12W Screw vertical check valve Main dimension

DN (mm)	ZG	H	L
15	1/2"	73	43
20	3/4"	85	48
25	1"	95	55
32	1-1/4"	113	73
40	1-1/2"	138	86
50	2"	156	98
