H74X Wafer swing check valve

H74X Wafer swing check valveH74X Wafer swing check valve
H74X Wafer swing check valve

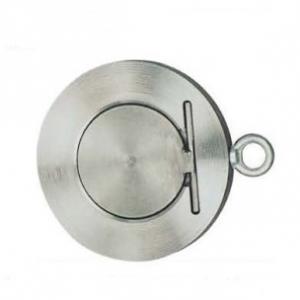

H74X Wafer swing check valve Product introduction

Wafer swing check valve

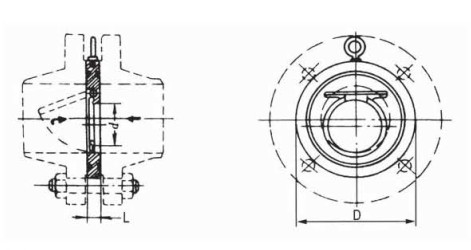

H74X Wafer swing check valve Main dimension

DN(mm) d L D
I型 II型 PN1.0 PN1.6 PN2.5 PN4.0
50 25 15 22 109 109 109 109
65 38 15 22 129 129 129 129
80 46 15 22 144 144 144 144
100 72 15 24 164 164 170 170
125 95 16 26 194 194 186 186
150 114 19 29 221 221 226 226
200 140 29 43 275 275 286 293
250 188 29 43 330 331 343 355
300 216 38 50 380 386 403 420
350 263 41 52 440 446 460 477
400 305 51 62 491 498 517 549
450 356 51 62 541 558 567 574
500 406 65 80 596 620 627 631
600 482 70 90 698 737 734 750

H74X Wafer swing check valve Product order instruction
