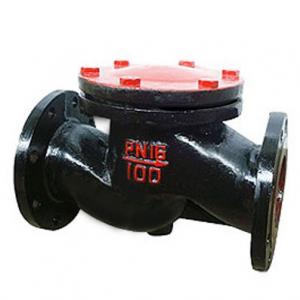

H41T Cast iron lift check valve

H41T Cast iron lift check valve Product introduction

H41T Cast iron lift check valve manufacturer, factory and supplier. H41T Cast iron lift check valve is cast iron body, brass seat design, lift type, automatic non-return valve. H41T Cast iron lift check valve is used to secure one direction flow and prevent backflow in the water supply system. H41T Cast iron lift check valve eliminates pressure surge upon pump stopping without vibration and slamming noise.

H41T Cast iron lift check valve specification:

Medium applicable	Water, Oil etc.
Main material	Cast iron, etc
Temperature applicable	≤120ºC
Nominal Pressure	PN1.0--4.0Mpa or Class150
Nominal Diameter	DN15-DN1000, 1/2"- 40"
Flange Dimension	GB/T 9119 or other standards conforming to the requirements
Face to Face Length	GB/T 12221 or others

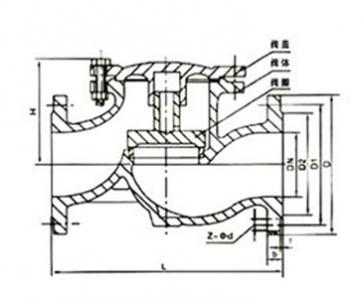

H41T Cast iron lift check valve Main dimension

Type	DN（mm）	Dimension（mm）								Weight（kg）
Type	DN（mm）	L	D	D1	D2	b-f	Z-Φd	H	S	Weight（kg）
H41T-16	25	160	115	85	65	16-2	4-14	65	32	3
	32	180	135	100	78	18-2	4-18	84	36	4.5
	40	200	145	110	85	18-3	4-18	96	42	7
	50	230	160	125	100	20-3	4-18	115	42	9.5
	65	290	180	145	120	20-3	4-18	145	50	13.5
H41T-16	80	310	195	160	135	22-2	8-18	156		24.5
	100	350	215	180	155	24-3	8-18	170		32.5
	125	400	245	210	185	26-3	8-18	201		50
	150	480	280	240	210	28-3	8-23	238		70
	200	600	335	295	265	30-3	12-23	245

H41T Cast iron lift check valve Product order instruction
