H42X Cast iron foot valve

H42X Cast iron foot valveH42X Cast iron foot valve
H42X Cast iron foot valve

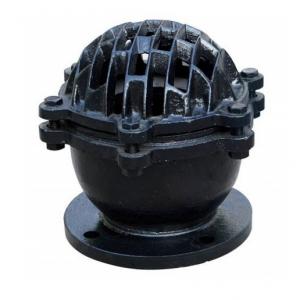

H42X Cast iron foot valve Product introduction

H42X Cast iron foot valve

H42X Cast iron foot valve Technical parameters

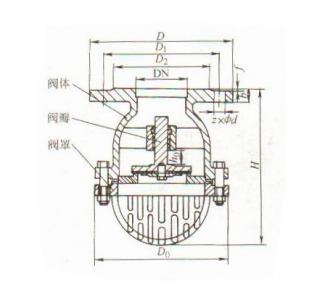

H42X Cast iron foot valve Main dimension

Type DN(mm) Dimension(mm) Weight(kg)
D D1 D2 b-f Z-Φd D0 h0 H
H42X-2.5 50 140 110 90 16-3 4-14 135 17 142 4
65 160 130 110 16-3 4-14 168 25 180 6.5
80 185 150 125 18-3 4-18 198 32 197 8.5
100 205 170 145 18-3 4-18 247 40 230 143.5
125 235 2500 175 20-3 8-18 272 43 270 18
150 260 225 200 20-3 8-18 315 38 297 24
200 315 280 255 22-3 8-18 405 65 382 38
250 370 335 310 24-3 12-18 465 84 460 64
300 435 395 262 24-4 12-23 510 90 530 98

H42X Cast iron foot valve Product order instruction



H42X Cast iron foot valve Related Products

Previous:H44T-10 Cast iron swing check valve

Next:H12W-16T Brass screw check valve
