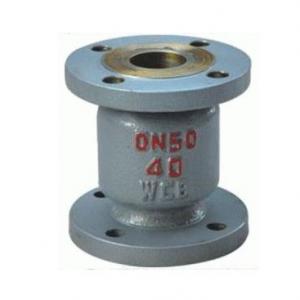

H42H Lift check valve

H42H Lift check valve Product introduction

H42H Lift check valve manufacturer, factory and supplier.H42H Lift check valve is lift type automatic non-return valve. H42H Lift check valve is used to secure one direction flow and prevent backflow in the water supply system. It eliminates pressure surge upon pump stopping without vibration and slamming noise.

H42H Lift check valve Specification:

Medium applicable	Water, Oil etc.
Main material	WCB, WCC, SS304, SS316, CF8 etc
Temperature applicable	≤4250ºC
Nominal Pressure	PN1.0--4.0Mpa or Class150
Nominal Diameter	DN15-DN100, 1/2"- 40"
Flange Dimension	ASME B16.5, BS4504, ISO2531, ISO7005 and other standards conforming to the requirements
Face to Face Length	API594, BS5155, ISO5752, DIN

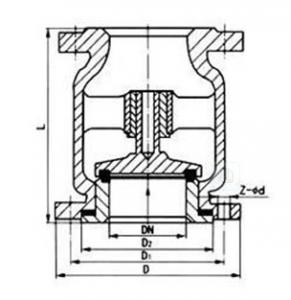

H42H Lift check valve Main dimension

PN	DN	Main dimension									Outline
PN	DN	L	D	D 1	D 2	D 6	b	f	f 1	Z-φd	H
1.6MPa	40	200	145	110	85	-	16	2	-	4-18	95
	50	230	160	125	100	-	16	2	-	4-18	105
	65	290	180	140	120	-	18	2	-	4-18	120
	80	310	195	165	135	-	20	3	-	8-18	130
	100	350	215	180	155	-	20	3	-	8-18	140
	125	400	245	210	185	-	22	3	-	8-12	155
	150	480	280	240	210	-	24	3	-	8-23	180
	200	600	335	295	265	-	26	3	-	12-23	215

H42H Lift check valve Product order instruction
