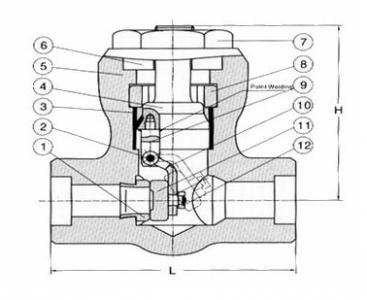

Drawing
Catalogue
Inquiry

H61H Socket weld check valve Product introduction

H61H Socket weld check valve manufacturer, factory and supplier. H61H Socket weld check valve is lift type,forged steel material for water, steam,oil, gas industrial system, the pressure from Class 150 to 2500, PN16 to PN420, size from DN15 to DN50.

H61H Socket weld check valve standard:
Design: API 602/ASME 16.34/BS 5352
Pressure Test: API 598
tag: MSS SP25
SW Socket welding ends according to ASME B16.11
BW butt end by ASME B16.25
NPT threaded connectors according to ASME B1.20.1

H61H Socket weld check valve Optional Materials
Carbon Steel: A105, LF2
Stainless Steel: F304, F304L, F316, F316L
Duplex: F51, F55
Alloy: F1, F5, F5A, F9, F11, F22

H61H Socket weld check valve Product order instruction
